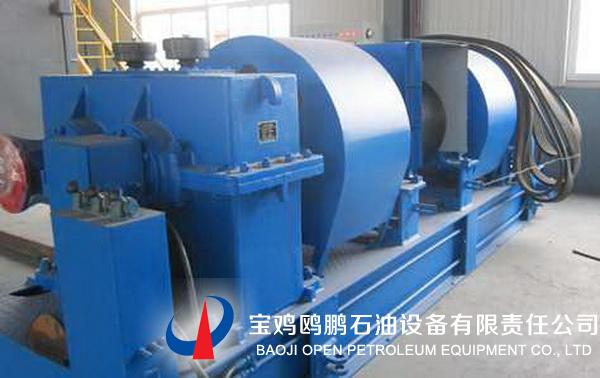

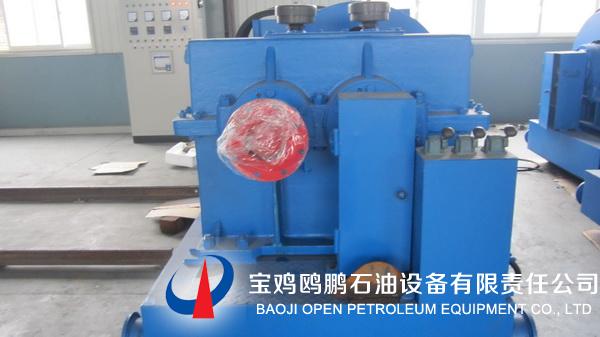

Transmission device characteristics:
The company's Transmission device is suitable for 20, 30, 40, 50, 70 various models drilling rig; transmission device with sophisticated processing, process specifications, reasonable structure, compact transmission structure, high efficiency, easy disassembly, stable and reliable performance.
|
30DJ Transmission Device Technical Data
|
50J Transmission Device Technical Data
|
|
Data
|
Gear Reducer JS-1000
|
Gear Box
|
Data
|
Gear Reducer JS-1200
|
Gear Box
|
|
Max.Transmission power: KW
|
735
|
588
|
Max.Transmission power: KW
|
880
|
1100
|
|
Driving shaft allowable Max.speed:r/min
|
1500
|
912
|
Driving shaft allowable Max.speed:r/min
|
1500
|
1000
|
|
Driven shaft allowable Max.speed:r/min
|
-
|
304
|
Driven shaft allowable Max.speed:r/min
|
-
|
580
|
|
Driving shaft allowable Max.torque:KN.M
|
5590
|
-
|
Driving shaft allowable Max.torque:KN.M
|
5600
|
-
|
|
Transmission ratio
|
01:01.5
|
01:01.1
|
Transmission ratio
|
01:01.5
|
01:01.7
|
|
Center height:mm
|
545
|
545
|
Center height:mm
|
545
|
545
|
|
Allowable Max.Temperature
|
80
|
80
|
Allowable Max.Temperature
|
85
|
85
|
|
Outline Dimension（LxWxH）mm
|
1210x1015x1035
|
1987x1305x975
|
Outline Dimension（LxWxH）mm
|
1270x1085x980
|
2000x1480x981
|
|
Weight:KG
|
1116
|
2640
|
Weight:KG
|
1400
|
2880
|
|
